The heart of flow chemistry

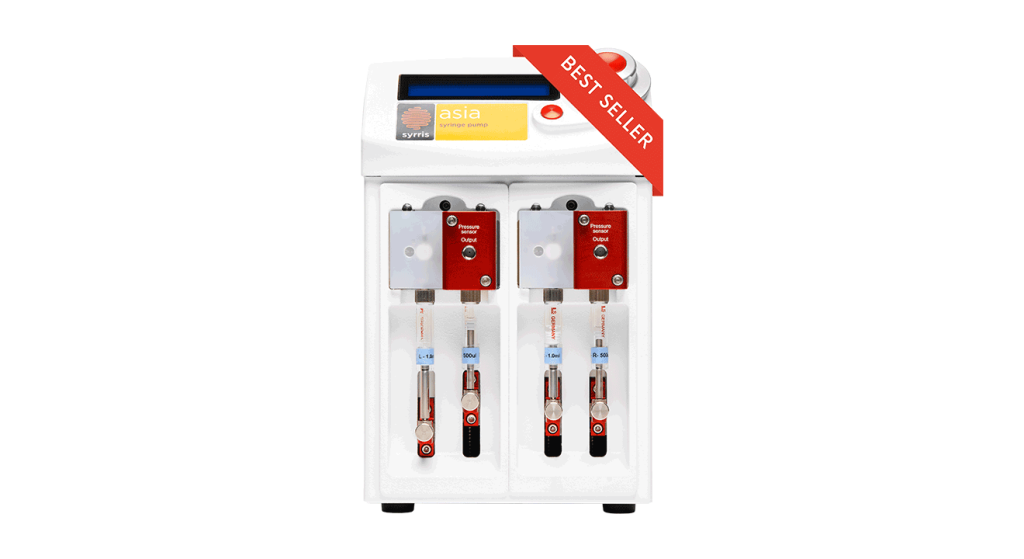

Engineered for flexibility and performance, the Asia Syringe Pump gives you the freedom to explore chemical space your way. Built from highly chemically resistant materials, it delivers ultra-smooth, reliable flow for even the most demanding applications. Whether you’re scaling up or down, the pump offers complete control without locking you into a fixed workflow, making it a truly versatile solution for flow chemistry.
- Accelerate innovation with OPC-UA connectivity for AI-powered labs
- Wide flow range of 1.0 μL to 10 mL/min
- Wide pressure range of up to 20 bar (300psi)
Works with any flow chemistry system
The Asia Syringe Pump is designed to work with any flow chemistry setup; with Asia Modules, third-party flow reactors, or any custom flow system you create. It features three control modes that enable full automation, allowing you to focus on more important tasks.
Three control modes:
- Asia External Controller – Future-ready with OPC-UA, enabling AI-driven chemistry
- Manual – Integrated twist and-click control knob and a large LCD display
- Asia Manager Software – Advanced control, data logging, and automation of flow chemistry processes
Any chemical, any time
Two independent flow channels provide you with ultra-smooth low pulsation dynamic flow rates of 1.0 μL to 10 mL/min, ensuring consistent results. The Asia Syringe Pump’s patented design uses PCTFE and glass components only to give you excellent chemical compatibility, allowing you to pump volatile, viscous, and corrosive liquids for a wide range of applications.
Accurate, precise, and safe
Accurate flow rates at pressures up to 20 bar/ 300 psi are achieved through robust construction and safety is ensured through pressure sensors on each channel.
No calibration is required.
Valves, syringes and pressure sensors can all be replaced without the need for tools.
Asia Syringe Pump specifications
| Universal pumping | Works with any flow chemistry system |
| Ultra-smooth flow | Smooth flow for consistent results |
| 1.0μl to 10ml/min | Wide flow rate range |
| Excellent chemical compatibility | PCTFE and glass components only |
| Up to 20bar/300psi | Wide pressure range |
| Three control modes | Manual, automated, and OPC-UA software control |
| Dual-syringe | Simultaneous independent flow channels |
| User-friendly | No tools or calibration required |
| Safe | Pressure sensors on each channel with automatic overpressure stop |
| Compact design | Space-saving at only 16 cm (6.3”) wide |
Asia syringe volumes and flow rates
Choose from four paired syringes with defined flow rate ranges:
- Asia Yellow Syringes (50 µL / 100 µL): 1.0 µL to 250 µL/min)
- Asia Green Syringes (250 µL / 500 µL): 5.0 µL to 1.25 mL/min)
- Asia Blue Syringes (500 µL / 1 mL): 10 µL to 2.5 mL/min)
- Asia Red Syringes (2.5 mL / 5 mL): 50 µL to 10 mL/min

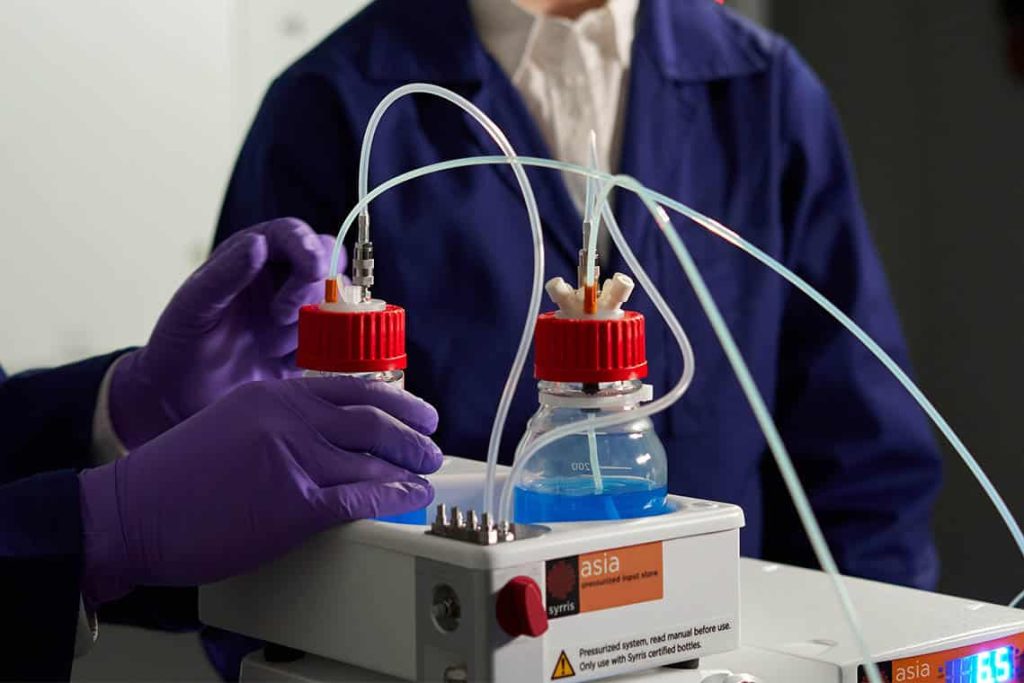

Asia Pressurized Input Store
The Asia Pressurized Input Store is designed to further expand the capabilities of the Asia Syringe Pump. It allows four reagents to be stored under an inert gas atmosphere. The 1 bar gas pressure assists in delivering a smooth flow by minimizing input cavitation and gas bubble formation.
